Specification:
1. Standard Mark certificate to AS1221 Australian standard
2. Licence number SMKH21422
3. Side plates 1mm colld rolled steel or stainless steel
4. RAL3000 polyester epoxy powder coating
5. 1 manual stop valve with connection fitting
6. Inlet pipe galvanized steel or stainless steel
7. Unwind test through hose guide force ≤ 100N
8. Red or black fire hose to AS1180
9. Three operating sequence nozzle can choose
10. Max working pressure 15 bar, test pressure 17 bar

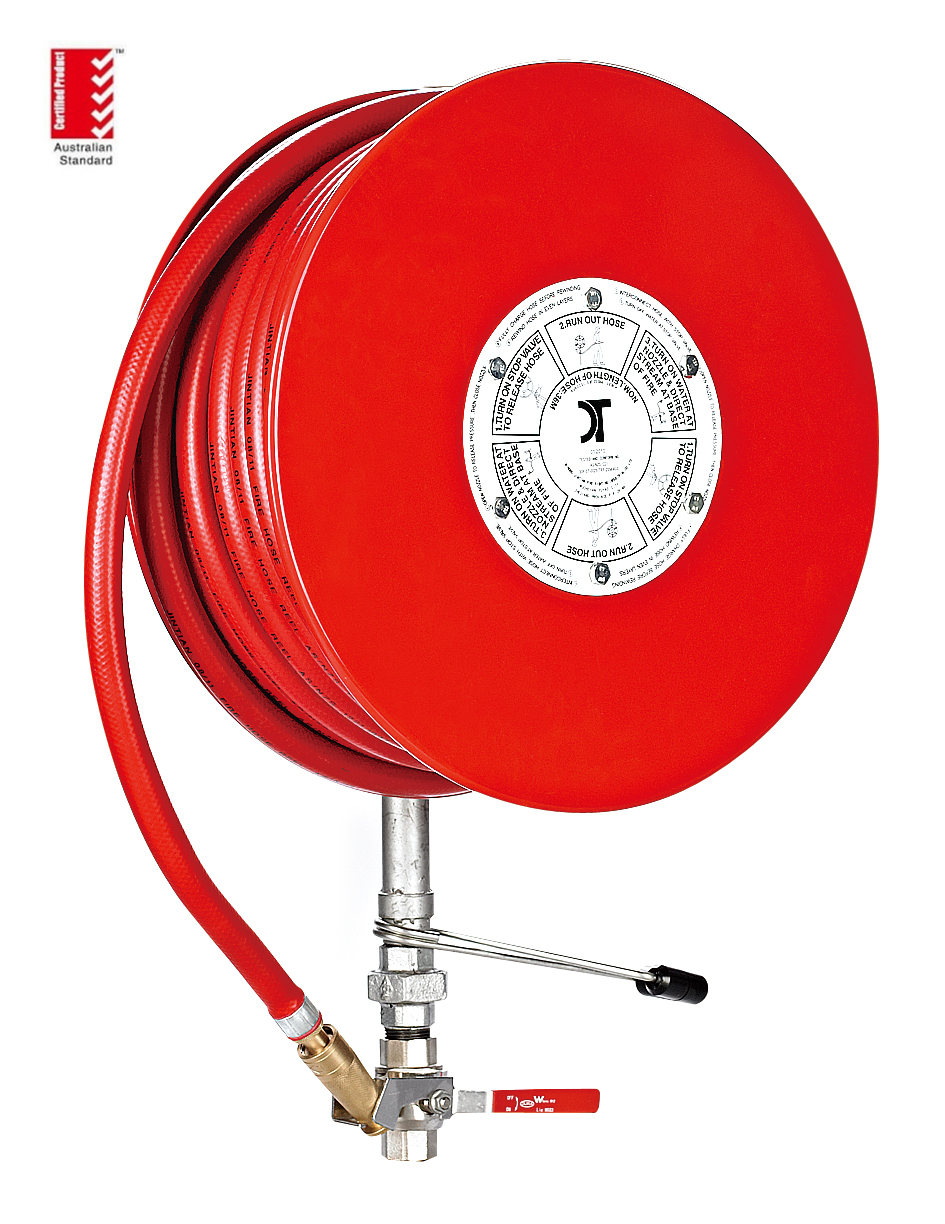

Fire Hose Reels provide a reasonably accessible and controlled supply of water to combat a potential Class A fire risk.
Various types of Fire Hose Reels are available to meet specific needs.
With a standard fully extended length of 36 metres, Fire Hoses are designed to deliver a minimum of 0.33 litres of water per second.
A control nozzle attached to the end of the hose enables the operator to control the direction and flow of water to the fire.
The Fire Hose Reel features:
A unique ball valve shut off device, ensuring the maximum flow of water is available to the hose with one movement of a lever
A solid brass hose nozzle
Quick and easy installation using our simple wall mounting bracket.
|
Product Name |
Size |
H(mm) |
W(mm) |
D(mm) |
Inlet |
Outlet |
|
Fire Hose Reel
with Swivel Arm |
19mm*36M |
530 |
280 |
480 |
1''BSP |
Spray-Jet-Off |
|
19mm*36M |
530 |
280 |
480 |
1''BSP |
Jet-Off |
|
19mm*36M |
530 |
280 |
480 |
1''BSP |
Off-Jet |
|
25mm*36M |
580 |
310 |
550 |
1''BSP |
Spray-Jet-Off | |
