Home > Products > CO2 Alloy Steel Extinguishers(SS01-105-110)

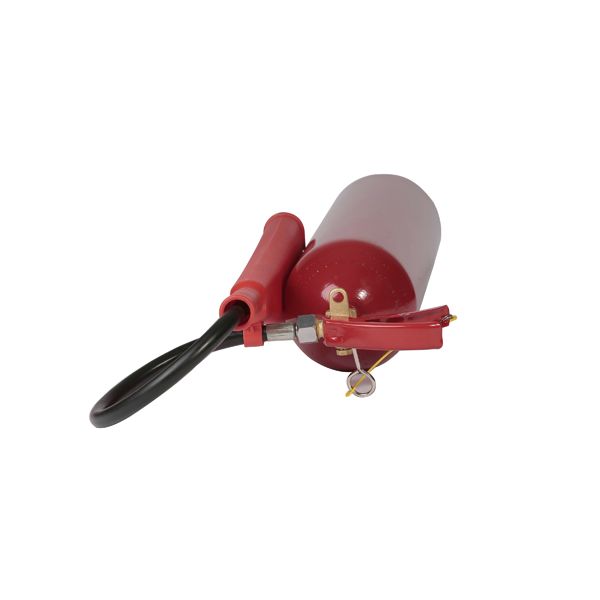

CO2 Alloy Steel Extinguishers(SS01-105-110)

Product Name:CO2 Alloy Steel Extinguishers

Product Code: SS01-105-110

Out-diameter(mm): Φ136

Cylinder high(mm): 655

Cylinder weight(kg): 7.66

Extinguisher weight(kg): 14.8

Volume(L): 7.5

Filling Weight(kg): 5kg CO2

Temperature range(℃): ﹣20℃~+60℃

Max working pressure(bar): 174

Test pressure(bar): 250

Material: 34CrMo4

Min wall-thickness(mm): 2.78

Fire class: 89B

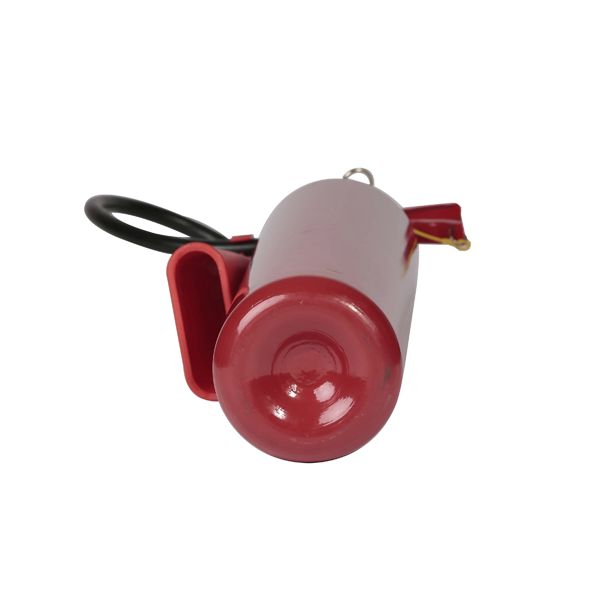

Bottom of cylinder: concave


CO2 Alloy Steel Extinguishers are normally used for Fire Classes B and Fire Classes E.

The range of our CO2 Alloy Steel Extinguishers are from filling 1.3kg CO2 to 6kg CO2.

The related volume is from 2L to 9L with different filling rate 0.667 or 0.75.

The cylinder material is 34CrMo4. The cylinder body is lighter than Carbon Steel cylinder.

The cylinder bottom is concave or convex.

The cylinder and valve have obtained CE certificate.

Cylinder surface is with good polyester painting RAL3000.

Engineers from the German TUV company Shanghai branch monitor the production procedures of

the CO2 CE Certified alloy steel cylinders.

We assure the safety of users with excellent quality products.

We could provide OEM service to meet customer’s special requirements.
